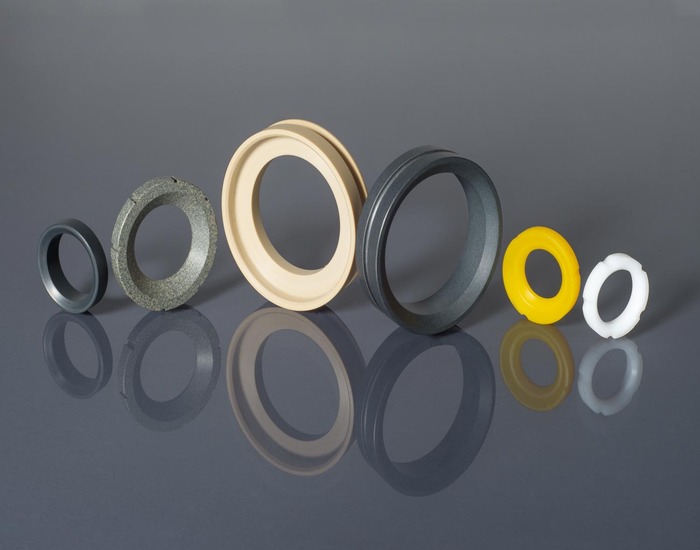

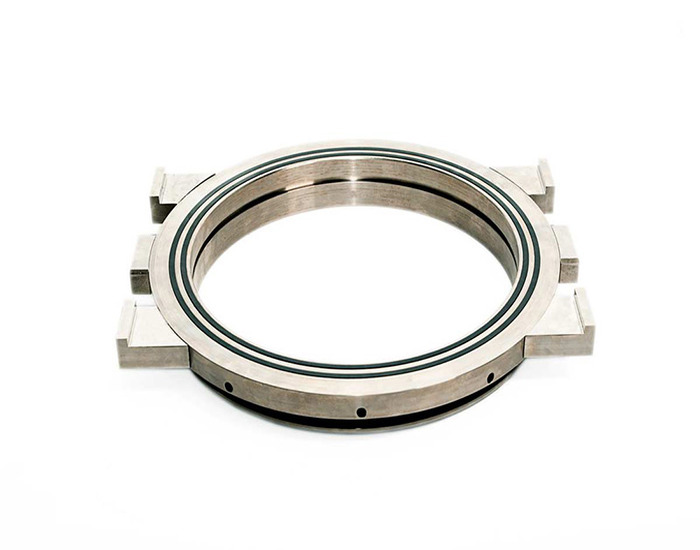

SEAT RINGS (TRUNNION MOUNTED BALL VALVES)

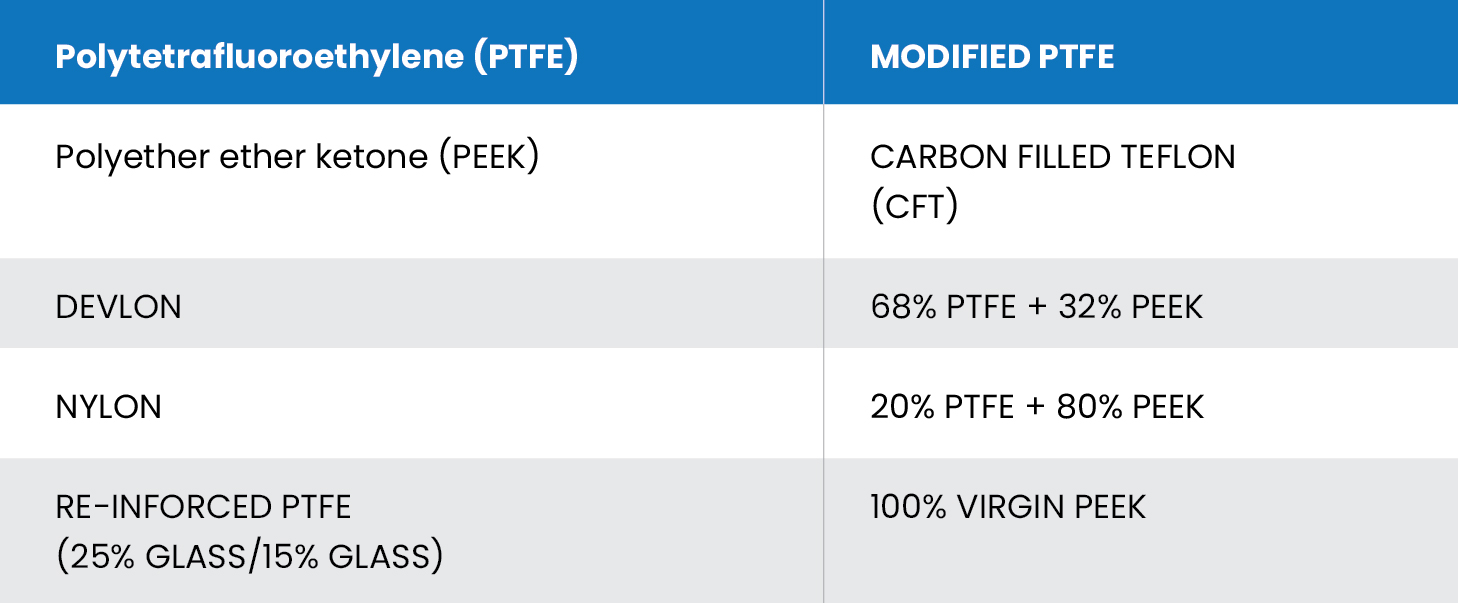

The soft seal used in Seat Rings depends on valve applications. The pressure, the operating temperature, the type of fluid in the passage etc. are decisive in the evaluation. The projects differ in Single Piston Effect (SPE) or Double Piston Effect (DPE). In both solutions pressure exerted on the seats, albeit in different ways, allows the seats to adhere to the sphere/ball, thus guaranteeing tightness. Size range

• Size Range- 1½” to 42” (DN40-DN750)
• Pressure Range- 150 PSI to 2500 PSI
• Corrosion Resistant Surface Treatment Processes like
• Electroless Nickel Plating, ENP (25-75 Microns)
• Nickel & Silicon Carbide Plating(30-50 Microns)

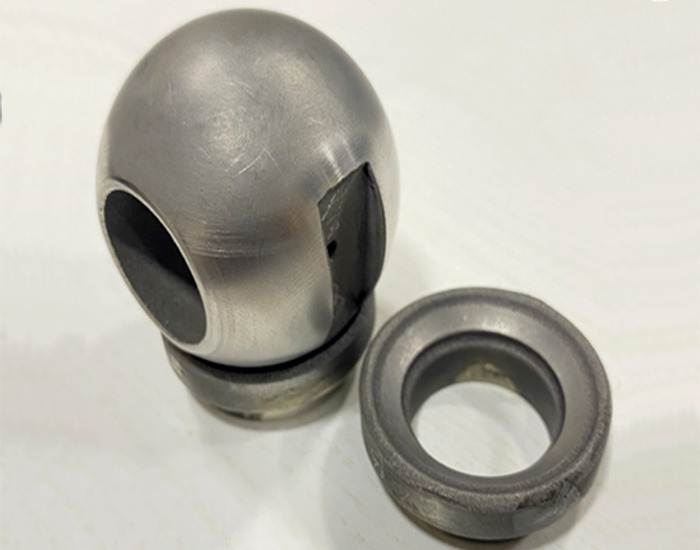

METAL SEATS AND BALLS (METAL SEATED BALL VALVES)

• Full Finish Ready to Assemble Seats and Balls in sets along with Coating, Grinding & Lapping.
• Size Range- ¼” to 24” (DN10-DN600)
• Pressure Range- 150 PSI to 2500 PSI
• Surface Treatment Processes carried out as per critical applications depending on Temperature, Pressure, Fluids to be handled
• Tungsten Carbide Coating
• Chromium Carbide Coating
• Stellite 6/12/21 Coating

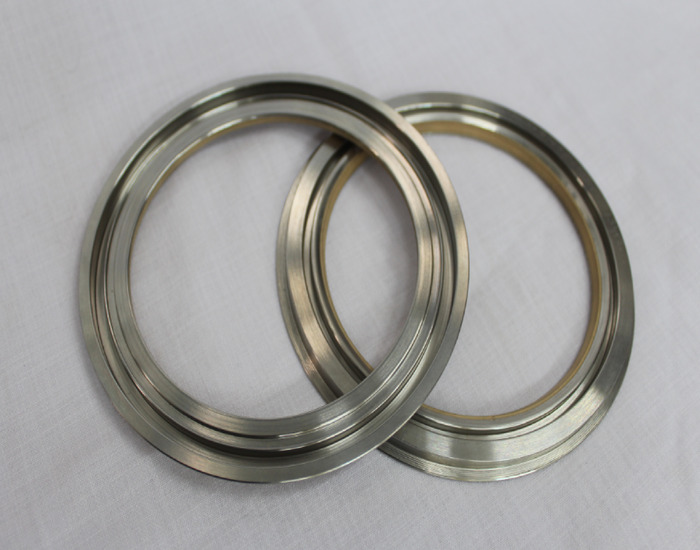

FIRE SAFE SEAT ASSEMBLIES (DOUBLE OFFSET BUTTERFLY VALVES)

Such Seat Assemblies are used in High Performance Double Offset Butterfly Valves which can withstand high temperatures and various operating pressures. The Soft Seat fitted inside Metal Seat is usually PEEK filled PTFE.

• Size Range- 3” to 42” (DN80 - DN1050)
• Pressure Range- 150 PSI to 300 PSI

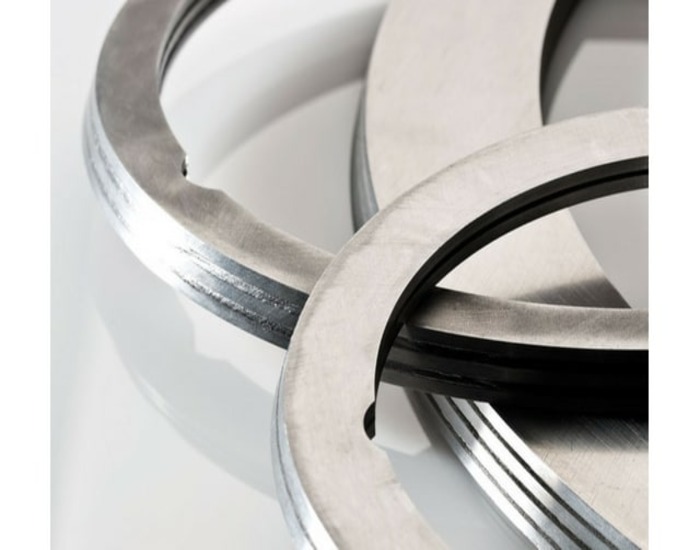

LAMINATED SEAL RINGS (TRIPLE OFFSET BUTTERFLY VALVES)

• Size Range- 3” to 12” (DN80 - DN300)
• Laminated Stainless Steel and Graphite layers of various models depending on airtightness and smooth operation required
• 7 Layers (4 Steel+3 Graphite)
• 5 Layers (3 Steel + 2 Graphite)
• 3 Layers (2 Steel + 1 Graphite)
• Suitable for High Temperatures of 350°C as well as Cryogenic temperatures upto -196°C.

RETAINER RINGS

• Size Range- 3” to 42” (DN80 - DN1050)
• Pressure Range- 150 PSI to 1500 PSI
